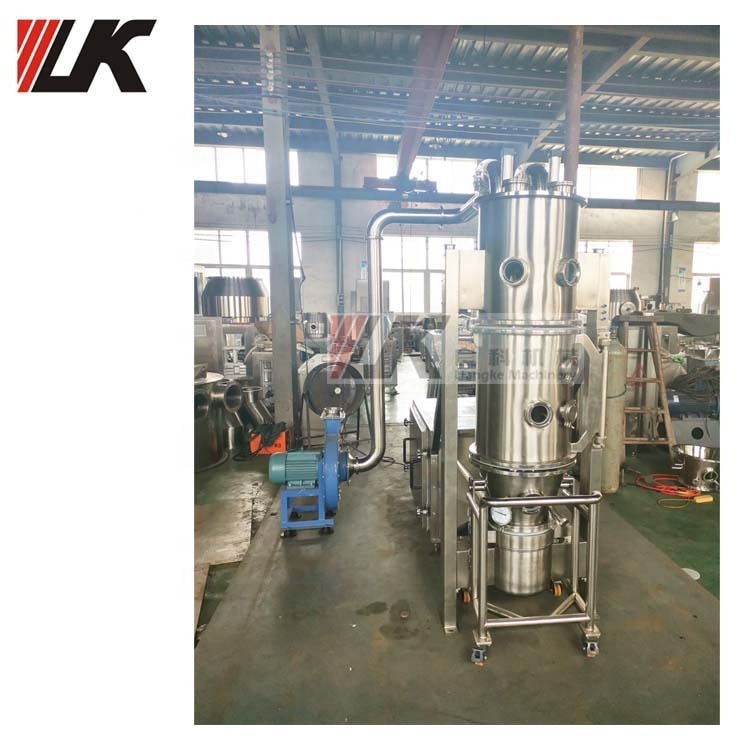

Medicine Processing FL-15 Spray Equipped Top Mini Fluid Bed Dryer In Pharmacy

1.0 Sets
MOQ
Medicine Processing FL-15 Spray Equipped Top Mini Fluid Bed Dryer In Pharmacy
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Type: Fluid Bed Drying Equipment
Application: Medicine Processing, Chemicals Processing, Food Processing, Cosmetics Processing
Condition: New
Voltage: 220V/380V
Power: 12KW
Dimension(L*W*H): 550mm dia.
Key Selling Points: Multifunctional
Warranty: 1 Year
Weight (KG): 0
Applicable Industries: Food & Beverage Factory, Farms, Energy & Mining, Pharmacy, Cosmetics, Feedstuff, Chemicals, Ceramic
Showroom Location: None
Marketing Type: Hot Product 2019
Machinery Test Report: Not Available
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC, Engine
Product Name: Top Spray Equipped Mini Fluid Bed Dryer in Pharmacy
Material: 304 Stainless Steel
Material Tank Volume: 50L
Material Tank Diameter: 480mm
Function: Drying and Granulating
Production Capacity: 5-15KG/batch
Power Supply: 3 phase, 380V/50HZ
Steam Pressure: 0.4-0.6MPa
Steam Consumption: 15KG/h
Keywords: Fluid bed granulator and coater
After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Field maintenance and repair service
Local Service Location: None
Сертификация: CE
Основная информация
Сертификация: CE
Оплата и доставка Условия
Packaging Details: FL-15 Top spray equipped mini fluid bed dryer in pharmacy is packed in standard exporting wooden case.
Supply Ability: 20 Set/Sets per Month
Характер продукции
FL-15 Top Spray Equipped Mini Fluid Bed Dryer in Pharmacy
Product Description
FL fluid bed granulating and coating machine is a new model of equipment for granulation, which integrates the techniques of spray-granulating and fluid bed. It’s mainly suitable for the concentrated solution and adhesive to prepare granules in Chinese and western pharmaceutical, food and chemical industries.
Technical Paramenters
Model
FL-15
Material container volume (L)
45
Material container diameter (mm)
550
Production capacity (KG/batch)
15
Steam pressure (MPa)
0.4-0.6
Steam consumption (Kg/h)
20
Compressed air pressure (MPa)
0.4-0.6
Compressed air consumption (m3/min)
0.6
Fan power (KW)
3
Electric heater power (KW)
12
Noise (dB)
With isolating treatment, the noise of draught fan is less than 75 dB.
Working Principle
The air flow sucked by the negative pressure of induced draught fan will pass through the air filter, heat exchanger and delivery conduit, finally enter the fluid bed granulating room from the airflow distribution board to blast the raw powder (such as original powder, Polybutene, absorbent, western medicine or food etc.) into boiling fluidized state and start mixing at the same time.

Liquid material and the compressed air for atomizing liquid material enter the sprayer along their respective pipes. The compressed air atomizes the liquid material into fine particles to spray in the fluid bed granulating room, and then mix with raw powder to bond into granules. At the same time, the granules will be dried by hot air and a part of powder rises to the filter bag to be collected. At a certain time, the left exhaust valve closes and the filter bag in left chamber shakes up and down under the action of air cylinder; the powder being shaken off then falls back to the fluid bed to granulate again. After shaking, the left exhaust valve opens again; after a while, the right exhaust valve closes and the filter bag in right chamber shakes.

The filter bags in both chambers shake alternatively to clean the collected powder to keep the filter bag unblocked and finish the process of mixing, drying and granulating.
Our Advantages
>> Equipment Height
It's higher than normal ones, the cloth bag not easy to be wet and blocked. Materials can be dried completely, drying speed is high, energy consuption is low.

>> Distribution Net
The distribution net between air intake chamber and material chamber are multi-layer, which is rigid, high temperature resistant and not easy to be deformed. Quick installation, quick dismantlement and easy to be cleaned.
The conventional ones have only two layers, a thin piece of stainless steel wire net on a punched plate. Hard to be cleaned, easily broken and transformable. Materials can not dried completely and homogeneously.

>> The insulating layer thickness of the heating cabinet
Insulating layer of the heating cabinet is added to anti-scald and reduce energy consumption. In addition, openable doors adopted, convenient for changing accessories, cleaning and maintenance.

>> Air inlet proportion execution valve and air outlet pneumatic execution valve
These two valves equiped, bag shaking system can be closed tightly to get a good dedusting effect.

>> Steam proportion valve is equipped
Temperature can be kept around the set value (about ±2°C), which is good for maintaining the medical stability and saving steam energy. Only 1/3 energy consumption when the set temperature reached.

>> Pressure relief device - the top relief valve
The fluidized bed chamber is in a state of negative pressure normal production, if it is in positive state then pressure will be relieved from the pressure relief port to avoid explosion and other unexpected accidents.

>> Bag shaking device
The bag shaking device is divided into two parts, left and right ones with many small cloth bags, and with continuously shaking and dedusting function.
The more cloth bags are designed, the larger area can be used for filter and dry, high efficiency, fast speed, time and energy saved. While, normal machine only has a one-piece shaking bag without any small bags. Bags can be shook only after the machine stops. Low efficiency, slow drying speed, long time and large energy wasted. Besides, our bag shaking device has a pneumatic location device to fix and protect bags for better dust removal effect. And the bottom of the device extends to the outside of the chamber to guarantee practicality. Some other factories’ apply gas seal at the device bottom, but after a long time of high temperature operation, the chamber will transform and sealing will not be tight any more. Therefore, material will be run off and great loss will be caused.

>> Observation light is installed in the chamber
Compared with other manufacturers, it is in the outside, the operation and drying conditions inside the chamber cannot be observed clearly.

>> Moreover, according to different countries geographically location (in humidity) and different environmental requirements, dehumidification and second dust removal system can be adopted to achieve their requirements of material, techniques and environment protection.
